Chemical Hoses

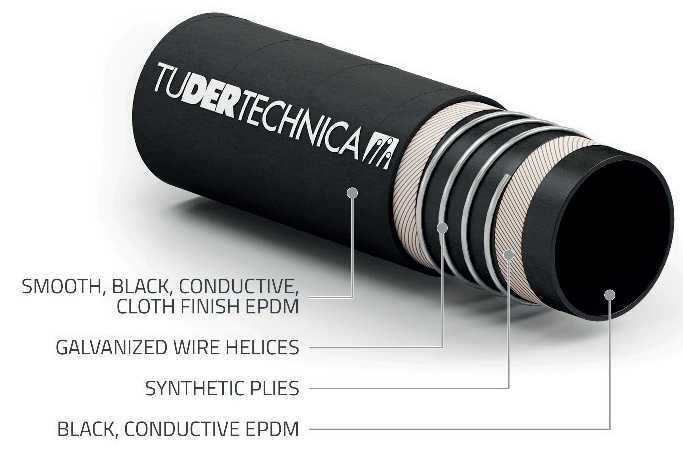

Tuchem EPDM


Suction and delivery hose designed according to EN 12115 standards for chemical products. Tested and certified hose by INERIS for use in Atex area (Ex-Zone).


DESCRIPTION
  • Tube : EPDM, black, conductive
  • Reinforcement : synthetic plies, galvanized wire helices, a/s copper wire to discharge static electricity
  • Cover : smooth, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
  • Marking : lilac tape TUDERTECHNICA TUCHEM® EPDM embossed according to norm EN 12115 TUDERTECHNICA EPDM EN12115:2011 DN SD PN 16 BAR Ω /T Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +120°C ( -40°F / +248°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω, R<109 Ω through the hose wall)
  • Norm : EN12115 - TRbF 131/2
tuchem-epdm
request-quote

[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
19 0,75 31 1,22 0,9 13 16 250 64 1000 0,66 0,44 65 2,56
25 1,00 37 1,46 0,9 13 16 250 64 1000 0,81 0,54 90 3,54
32 1,25 44 1,73 0,9 13 16 250 64 1000 0,99 0,66 120 4,72
38 1,50 51 2,00 0,9 13 16 250 64 1000 1,30 0,87 155 6,10
50 1,97 66 2,60 0,9 13 16 250 64 1000 2,13 1,43 215 8,46
51 2,00 67 2,64 0,9 13 16 250 64 1000 2,16 1,45 215 8,46
63,5 2,50 79,5 3,13 0,9 13 16 250 64 1000 2,86 1,92 275 10,83
75 2,95 91 3,58 0,9 13 16 250 64 1000 3,41 2,28 330 12,99
76 3,00 92 3,62 0,9 13 16 250 64 1000 3,45 2,31 330 12,99
100 3,94 116 4,57 0,9 13 12 185 48 750 4,41 2,95 450 17,72
102 4,00 118 4,65 0,9 13 12 185 48 750 4,46 2,99 450 17,72

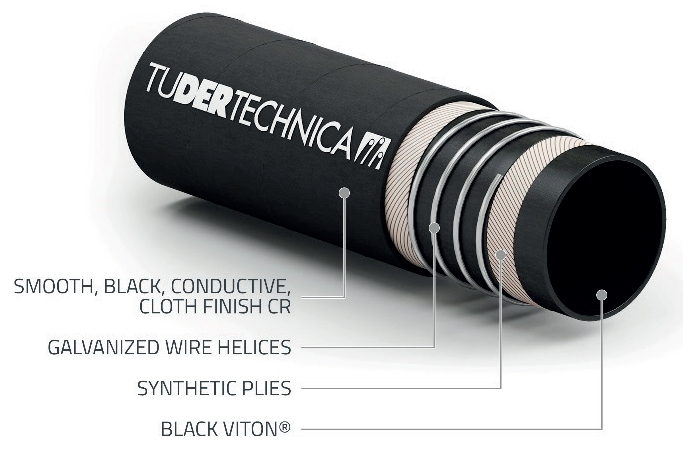

Tuchem Viton


tuchem-viton
request-quote

Suction and delivery hose designed according to EN 12115 standards for hot oils, chemical and petrol-chemical products.


DESCRIPTION
  • Tube : Viton®, black
  • Reinforcement : synthetic plies, galvanized wire helices, a/s copper wire to discharge static electricity
  • Cover : smooth, CR, black, conductive, abrasion, ageing, ozone and oil resistant, cloth finish
  • Marking : white/green tape TUDERTECHNICA TUCHEM® VITON® embossed according to norm EN 12115 TUDERTECHNICA FKM EN12115:2011 DN SD PN 16 BAR Ω Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -25°C / +120°C ( -13°F / +248°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω)
  • Norm : EN12115 - TRbF 131/2

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
19 0,75 31 1,22 0,9 13 16 250 64 1000 0,81 0,54 125 4,92
25 1,00 37 1,46 0,9 13 16 250 64 1000 1,01 0,68 150 5,91
32 1,25 44 1,73 0,9 13 16 250 64 1000 1,19 0,80 175 6,89
38 1,50 51 2,00 0,9 13 16 250 64 1000 1,48 0,99 225 8,86
50 1,97 66 2,60 0,9 13 16 250 64 1000 2,30 1,54 275 10,83
51 2,00 67 2,64 0,9 13 16 250 64 1000 2,33 1,56 275 10,83
63,5 2,50 79,5 3,13 0,9 13 16 250 64 1000 3,32 2,22 350 13,78
75 2,95 91 3,58 0,9 13 16 250 64 1000 3,83 2,57 400 15,75
76 3,00 92 3,62 0,9 13 16 250 64 1000 3,87 2,59 400 15,75
100 3,94 116 4,57 0,9 13 12 185 48 750 5,01 3,36 550 21,65
102 4,00 118 4,65 0,9 13 12 185 48 750 5,05 3,38 550 21,65

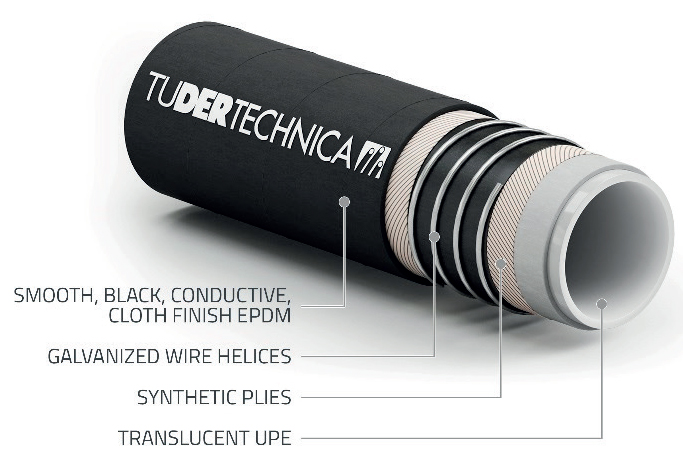

Tuchem UPE


Suction and delivery hose designed according to EN 12115 standards for chemical products.


DESCRIPTION
  • Tube : UPE, translucent. Phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006
  • Reinforcement : synthetic plies, galvanized wire helices, a/s copper wire to discharge static electricity
  • Cover : smooth, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
  • Marking : white/blue tape TUDERTECHNICA TUCHEM® UPE embossed according to norm EN 12115 TUDERTECHNICA UHMWPE EN12115:2011 DN SD PN 16 BAR Ω Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -35°C / +100°C ( -31°F / +212°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω)
  • Norm : EN12115 - TRbF 131/2
tuchem-upe
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
19 0,75 31 1,22 0,9 13 16 250 64 1000 0,75 0,50 115 4,53
25 1,00 37 1,46 0,9 13 16 250 64 1000 0,92 0,62 155 6,10
32 1,25 44 1,73 0,9 13 16 250 64 1000 1,10 0,74 200 7,87
38 1,50 51 2,00 0,9 13 16 250 64 1000 1,39 0,93 240 9,45
50 1,97 66 2,60 0,9 13 16 250 64 1000 2,30 1,54 330 12,99
51 2,00 67 2,64 0,9 13 16 250 64 1000 2,33 1,56 330 12,99
63,5 2,50 79,5 3,13 0,9 13 16 250 64 1000 3,09 2,07 415 16,34
75 2,95 91 3,58 0,9 13 16 250 64 1000 3,58 2,40 500 19,69
76 3,00 92 3,62 0,9 13 16 250 64 1000 3,62 2,42 500 19,69
100 3,94 116 4,57 0,9 13 12 185 48 750 4,63 3,10 675 26,57
102 4,00 118 4,65 0,9 13 12 185 48 750 4,67 3,13 675 26,57

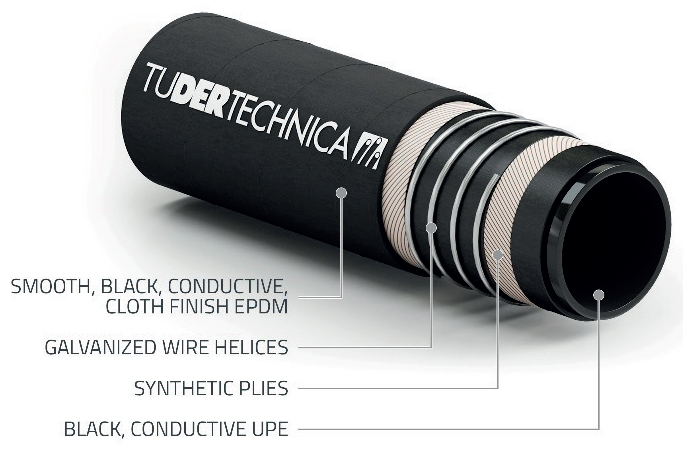

Tuchem UPE Full Conductive


Tuchem UPE Full Conductive
request-quote

Suction and delivery hose designed according to EN 12115 standards for chemical products. Tested and certified hose by INERIS for use in Atex area (Ex-Zone).


DESCRIPTION
  • Tube : UPE, black, conductive, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 cfr 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE
  • Reinforcement : synthetic plies, galvanized wire helices, a/s copper wire to discharge static electricity
  • Cover : smooth, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
  • Marking : white/blue tape TUDERTECHNICA TUCHEM® UPE FULL CONDUCTIVE embossed according to norm EN 12115 TUDERTECHNICA UHMWPE EN12115:2011 DN SD PN 16 BAR Ω/T Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -35°C / +100°C ( -31°F / +212°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω, R<109 Ω through the hose wall)
  • Norm : EN12115 - TRbF 131/2

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
19 0,75 31 1,22 0,9 13 16 250 64 1000 0,75 0,50 115 4,53
25 1,00 37 1,46 0,9 13 16 250 64 1000 0,92 0,62 155 6,10
32 1,25 44 1,73 0,9 13 16 250 64 1000 1,10 0,74 200 7,87
38 1,50 51 2,00 0,9 13 16 250 64 1000 1,39 0,93 240 9,45
50 1,97 66 2,60 0,9 13 16 250 64 1000 2,30 1,54 330 12,99
51 2,00 67 2,64 0,9 13 16 250 64 1000 2,33 1,56 330 12,99
63,5 2,50 79,5 3,13 0,9 13 16 250 64 1000 3,09 2,07 415 16,34
75 2,95 91 3,58 0,9 13 16 250 64 1000 3,58 2,40 500 19,69
76 3,00 92 3,62 0,9 13 16 250 64 1000 3,62 2,42 500 19,69
100 3,94 116 4,57 0,9 13 12 185 48 750 4,63 3,10 675 26,57
102 4,00 118 4,65 0,9 13 12 185 48 750 4,67 3,13 675 26,57

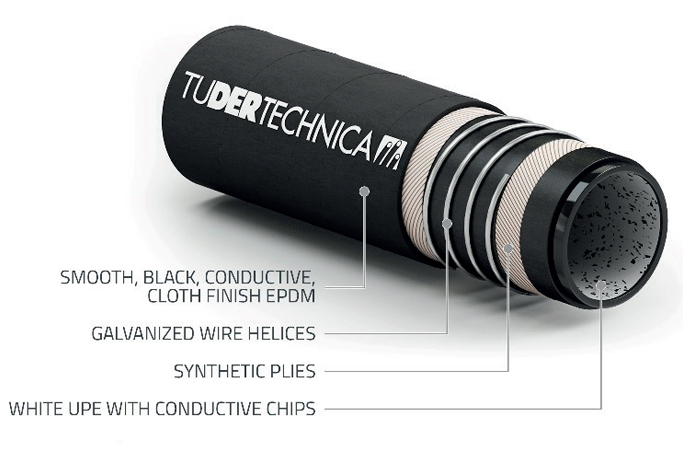

Tuchem UPE Chips Full Conductive


Suction and delivery hose designed according to EN 12115 standards for chemical products.


DESCRIPTION
  • Tube : UPE, white with conductive chips, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 cfr 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE
  • Reinforcement : synthetic plies, galvanized wire helices, a/s wire to discharge static electricity
  • Cover : smooth, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
  • Marking : white/blue tape TUDERTECHNICA TUCHEM® UPE CHIPS FULL CONDUCTIVE embossed according to norm EN 12115 TUDERTECHNICA UHMWPE EN12115:2011 DN SD PN 16 BAR Ω /T Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -35°C / +100°C ( -31°F / +212°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω, R<109 Ω through the hose wall)
  • Norm : EN12115 - TRbF 131/2
tuchem-upe-chips-full-conductive
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
19 0,75 31 1,22 0,9 13 16 250 64 1000 0,75 0,50 115 4,53
25 1,00 37 1,46 0,9 13 16 250 64 1000 0,92 0,62 155 6,10
32 1,25 44 1,73 0,9 13 16 250 64 1000 1,10 0,74 200 7,87
38 1,50 51 2,00 0,9 13 16 250 64 1000 1,39 0,93 240 9,45
50 1,97 66 2,60 0,9 13 16 250 64 1000 2,30 1,54 330 12,99
51 2,00 67 2,64 0,9 13 16 250 64 1000 2,33 1,56 330 12,99
63,5 2,50 79,5 3,13 0,9 13 16 250 64 1000 3,09 2,07 415 16,34
75 2,95 91 3,58 0,9 13 16 250 64 1000 3,58 2,40 500 19,69
76 3,00 92 3,62 0,9 13 16 250 64 1000 3,62 2,42 500 19,69
100 3,94 116 4,57 0,9 13 12 185 48 750 4,63 3,10 675 26,57
102 4,00 118 4,65 0,9 13 12 185 48 750 4,67 3,13 675 26,57

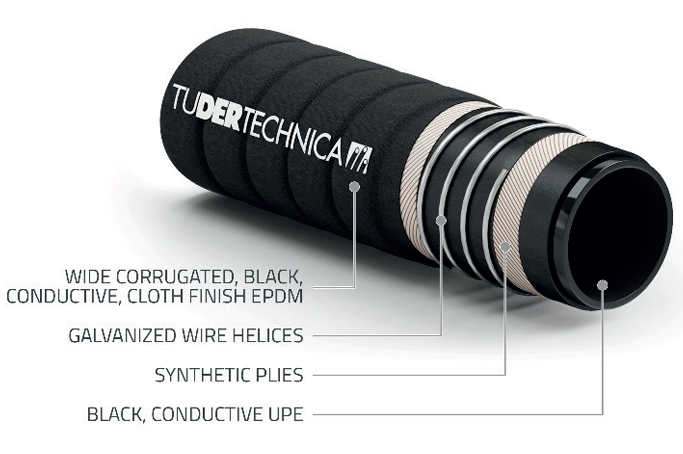

Tuchem UPE Full Conductive Form


Tuchem UPE Full Conductive Form
request-quote

Suction and delivery hose designed according to EN 12115 standards for chemical products.


DESCRIPTION
  • Tube : UPE, black, conductive, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 cfr 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE
  • Reinforcement : synthetic plies, galvanized wire helices, a/s copper wire to discharge static electricity
  • Cover : wide corrugated, EPDM, black, conductive, abrasion, ageing and ozone resistant, cloth finish
  • Marking : white/blue tape TUDERTECHNICA TUCHEM® UPE FULL CONDUCTIVE embossed according to norm EN 12115 TUDERTECHNICA UHMWPE EN12115:2011 DN SD PN 10 BAR Ω /T Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -35°C / +100°C ( -31°F / +212°F) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω, R<109 Ω through the hose wall)
  • Norm : EN12115 - TRbF 131/2

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 37 1,46 0,9 13 10 150 40 600 0,71 0,48 95 3,74
32 1,25 44 1,73 0,9 13 10 150 40 600 0,87 0,58 115 4,53
38 1,50 51 2,00 0,9 13 10 150 40 600 1,11 0,74 140 5,51
50 1,97 66 2,60 0,9 13 10 150 40 600 1,84 1,23 190 7,48
51 2,00 67 2,64 0,9 13 10 150 40 600 1,87 1,26 190 7,48
63,5 2,50 79,5 3,13 0,9 13 10 150 40 600 2,34 1,57 245 9,65
75 2,95 91 3,58 0,9 13 10 150 40 600 2,77 1,86 330 12,99
76 3,00 92 3,62 0,9 13 10 150 40 600 2,80 1,88 330 12,99
100 3,94 116 4,57 0,9 13 10 150 40 600 3,48 2,34 475 18,70
102 4,00 118 4,65 0,9 13 10 150 40 600 3,54 2,38 475 18,70

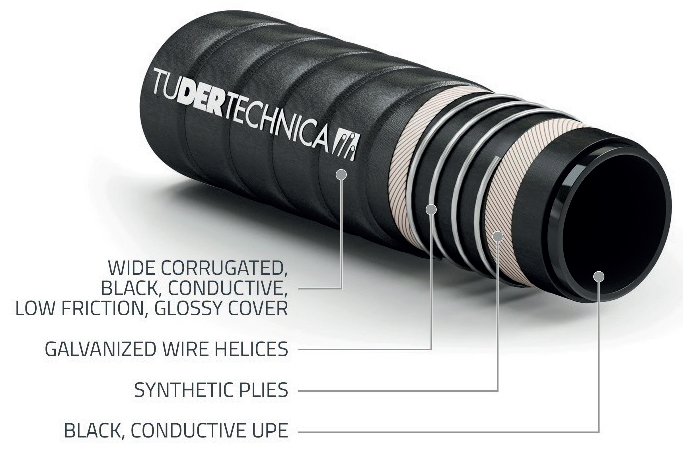

Glidetech UPE Full Conductive


Suction and delivery hose designed according to EN 12115 standards for chemical products.


DESCRIPTION
  • Tube : UPE, black, conductive, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 cfr 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE
  • Reinforcement : synthetic plies, galvanized wire helices, a/s copper wire to discharge static electricity
  • Cover : wide corrugated, black, conductive, low friction material, non-marking when dragged on the floor, abrasion, ozone, ageing, oil and chemical resistant, easy to clean, glossy cover
  • Marking : white/blue tape TUDERTECHNICA GLIDETECH® UPE FULL CONDUCTIVE embossed according to norm EN 12115 TUDERTECHNICA UHMWPE EN12115:2011 DN SD PN 10 BAR Ω /T Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -35°C / +100°C ( -31°F / +212°F ) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : : type Ω/T according to norm EN 12115 (R<106 Ω, R<109 Ω through the hose wall)
  • Norm : EN12115
glidetech-upe-full-conductive
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
25 1,00 37 1,46 0,9 13 10 150 40 600 0,71 0,48 100 3,94
32 1,25 44 1,73 0,9 13 10 150 40 600 0,87 0,58 125 4,92
38 1,50 51 2,00 0,9 13 10 150 40 600 1,11 0,74 150 5,91
50 1,97 66 2,60 0,9 13 10 150 40 600 1,87 1,25 200 7,87
51 2,00 67 2,64 0,9 13 10 150 40 600 1,90 1,27 200 7,87
63,5 2,50 79,5 3,13 0,9 13 10 150 40 600 2,34 1,57 260 10,24
75 2,95 91 3,58 0,9 13 10 150 40 600 2,72 1,82 350 13,78
76 3,00 92 3,62 0,9 13 10 150 40 600 2,75 1,84 350 13,78
100 3,94 116 4,57 0,9 13 10 150 40 600 3,86 2,59 500 19,69
102 4,00 118 4,65 0,9 13 10 150 40 600 3,89 2,61 500 19,69

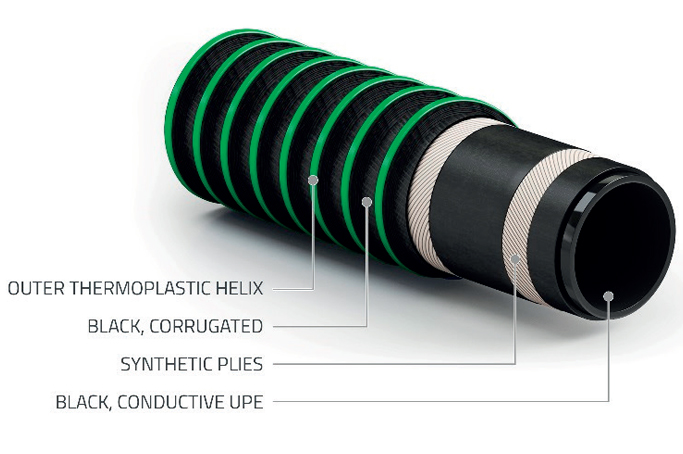

Spiraltech UPE Conductive


Spiraltech UPE Conductive
request-quote

Light and flexible lorry collecting hose suitable for chemical products.


DESCRIPTION
  • Tube : UPE, black, conductive, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 cfr 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE
  • Reinforcement : synthetic plies, a/s copper wire to discharge static electricity
  • Cover : corrugated, black, abrasion, ageing, ozone and oil resistant, outer thermoplastic helix

TECHNICAL CHARACTERISTICS
  • Temperature range : -25°C / +80°C ( -13°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
38 1,50 - - 0,9 13 10 150 30 450 1,05 0,70 85 3,35
51 2,00 - - 0,9 13 10 150 30 450 1,45 0,97 120 4,72
63,5 2,50 - - 0,8 11,5 10 150 30 450 1,75 1,17 155 6,10
76 3,00 - - 0,8 11,5 10 150 30 450 2,06 1,38 190 7,48
102 4,00 - - 0,7 10 10 150 30 450 2,69 1,80 260 10,24

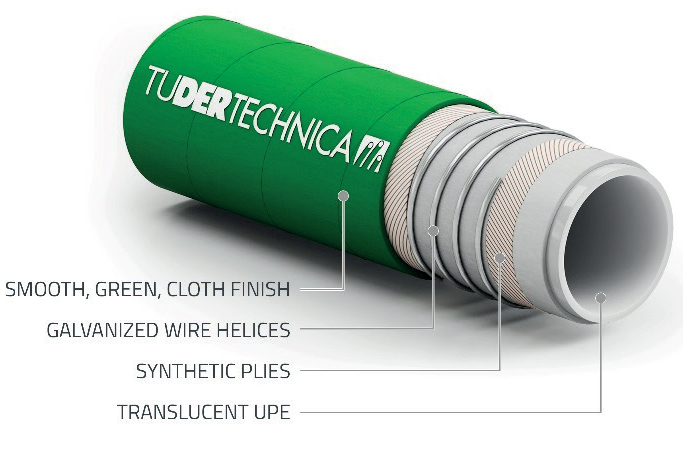

GPS Evolution


Suction and delivery hose designed for chemical products.


DESCRIPTION
  • Tube : UPE, translucent. Phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.1520, BfR Cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006
  • Reinforcement : synthetic plies, galvanized wire helices, a/s copper wire to discharge static electricity
  • Cover : smooth, green, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA GPS EVOLUTION

TECHNICAL CHARACTERISTICS
  • Temperature range : -30°C / +90°C ( -22°F / +194°F )
  • Norm : ISO 1307 for dimensional tolerances
gps-evolution
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
19 0,75 30 1,18 0,9 13 10 150 30 450 0,62 0,42 115 4,53
25 1,00 36 1,42 0,9 13 10 150 30 450 0,77 0,52 150 5,91
32 1,25 45 1,77 0,9 13 10 150 30 450 1,04 0,70 180 7,09
38 1,50 51 2,01 0,9 13 10 150 30 450 1,33 0,89 220 8,66
51 2,00 65 2,56 0,9 13 10 150 30 450 1,90 1,27 280 11,02
63,5 2,50 78,5 3,09 0,9 13 10 150 30 450 2,50 1,68 360 14,17
76 3,00 91 3,58 0,9 13 10 150 30 450 3,02 2,02 420 16,54
102 4,00 119 4,69 0,9 13 10 150 30 450 4,61 3,09 600 23,62
