Crush Resistant Food Hoses

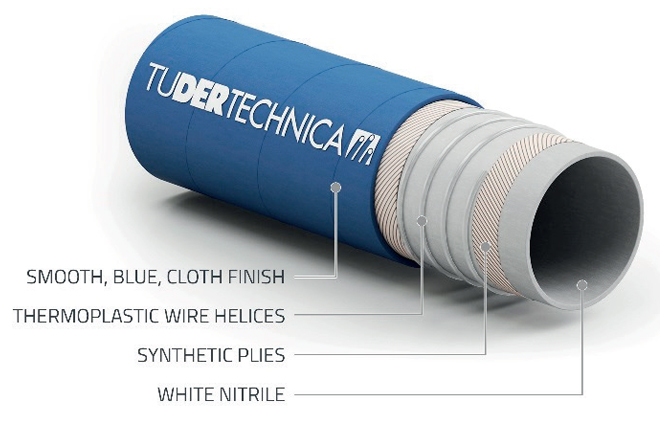

Tufood Fat Crush Resistant


Suction and delivery hose suitable for fatty and non-fatty food products. Crush resistant.


DESCRIPTION
  • Tube : NBR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II.
  • Reinforcement : synthetic plies, thermoplastic wire helices
  • Cover : smooth, blue, abrasion, ageing, ozone and oil resistant, cloth finish
  • Marking : TUDERTECHNICA TUFOOD® FAT CRUSH RESISTANT

TECHNICAL CHARACTERISTICS
  • Temperature range : -25°C / +80°C ( -13°F / +176°F )
  • Norm : ISO 1307 for dimensional tolerances
tufood-fat-crush-resistant
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]

38

1,50

54

2,13

0,7

10

10

150

30

450

1,58

1,06

170

6,69

51

2,00

67

2,64

0,7

10

10

150

30

450

2,00

1,34

240

9,44

63,5

2,50

81,5

3,21

0,7

10

10

150

30

450

2,70

1,81

310

12,20

76

3,00

94

3,70

0,7

10

10

150

30

450

3,15

2,11

380

14,96

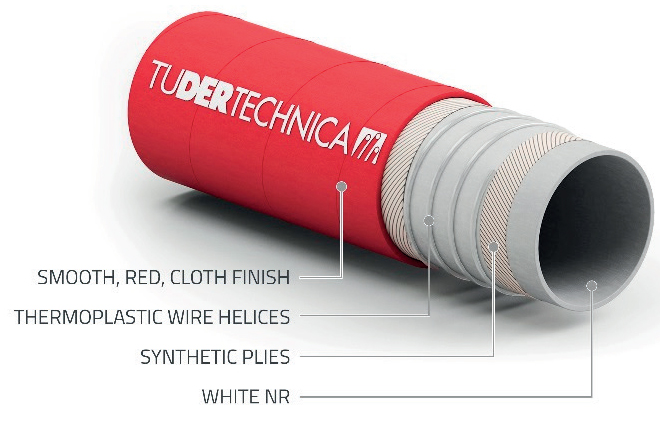

Tufood Natural Crush Resistant


tufood-natural-crush-resistant
request-quote

Suction and delivery hose suitable for milk, milk by-products, wine and non-fatty food products. Crush resistant.


DESCRIPTION
  • Tube : NR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006.
  • Reinforcement : synthetic plies, thermoplastic wire helices
  • Cover : smooth, red, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA TUFOOD® NATURAL CRUSH RESISTANT

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +80°C ( -40°F / +176°F)
  • Norm : ISO 1307 for dimensional tolerances

.
Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
38 1,50 54 2,13 0,7 10 10 150 30 450 1,46 0,98 170 6,69
51 2,00 67 2,64 0,7 10 10 150 30 450 1,85 1,24 240 9,44
63,5 2,50 81,5 3,21 0,7 10 10 150 30 450 2,50 1,68 310 12,20
76 3,00 94 3,70 0,7 10 10 150 30 450 2,92 1,96 380 14,96

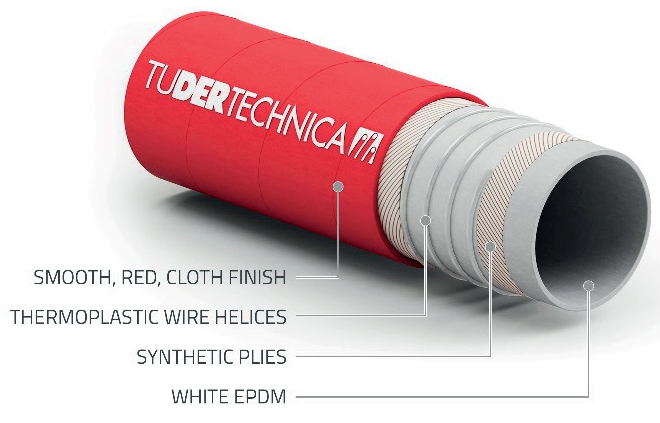

Tufood Epdm Crush Resistant


Suction and delivery hose suitable for a wide range of food products. Not recommended for fatty food products and oil. Crush resistant.


DESCRIPTION
  • Tube : EPDM, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, BFR recommendation XXI cat 2, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II.
  • Reinforcement : synthetic plies, thermoplastic wire helices
  • Cover : smooth, red, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA TUFOOD® EPDM CRUSH RESISTANT

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +120°C ( -40°F / +248°F )
  • Norm : ISO 1307 for dimensional tolerances
tufood-epdm-crush-resistant
request-quote

.
Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
38 1,50 54 2,13 0,7 10 10 150 30 450 1,38 0,92 170 6,69
51 2,00 67 2,64 0,7 10 10 150 30 450 1,74 1,17 240 9,44
63,5 2,50 81,5 3,21 0,7 10 10 150 30 450 2,36 1,58 310 12,20
76 3,00 94 3,70 0,7 10 10 150 30 450 2,76 1,85 380 14,96



Tuprestige Crush Resistant


tuprestige-crush-resistant
request-quote

Premium grade low permeation suction and delivery hose suitable for a wide range of products. Recommended for wine and spirits. Crush resistant.


DESCRIPTION
  • Tube : IIR, white, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA 21 CFR 177.2600, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE, JAPAN-Ministry of Health and Welfare Notice No.370,1959 and No.201,2006, 3A Sanitary Standard Class II
  • Reinforcement : synthetic plies, thermoplastic wire helices
  • Cover : smooth, red, abrasion, ageing and ozone resistant, cloth finish
  • Marking : TUDERTECHNICA TUPRESTIGE CRUSH RESISTANT

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +120°C ( -40°F / +248°F )
  • Norm : ISO 1307 for dimensional tolerances

.
Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
38 1,50 54 2,13 0,7 10 10 150 30 450 1,45 0,97 170 6,69
51 2,00 67 2,64 0,7 10 10 150 30 450 1,84 1,23 240 9,44
63,5 2,50 81,5 3,21 0,7 10 10 150 30 450 2,48 1,66 310 12,20
76 3,00 94 3,70 0,7 10 10 150 30 450 2,90 1,94 380 14,96
