Marine Hoses

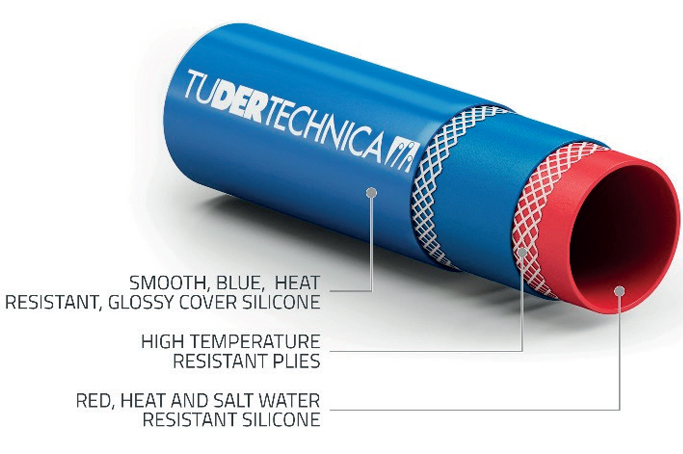

Tusil Marine


Used as straight connections in the wet exhaust system and engine water circulation lines.


DESCRIPTION
  • Tube : silicone red, heat and salt water resistant
  • Reinforcement : high temperature resistant plies
  • Cover : smooth, blue silicone rubber; abrasion, ageing, ozone, heat and paraffin oil resistant, glossy cover
  • Marking : TUDERTECHNICA TUSIL® MARINE

TECHNICAL CHARACTERISTICS
  • Temperature range : -60°C / +200°C ( -76°F / +392°F )
  • Norm : SAE J2006 TYPE R1 ISO 13363:2004 Type 1 class B ISO 1307 for dimensional tolerances

request-quote
tusil-marine

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [mt] [ft] [bar] [mm] [in] [mm] [in] [mt] [ft] [bar]
19 0,75 28 1,10 40 130 13 195 39 585 0,40 0,27 - -
25 1,00 34 1,34 40 130 10 150 30 450 0,50 0,34 - -
28 1,10 37 1,46 40 130 10 150 30 450 0,55 0,37 - -
32 1,25 41 1,61 40 130 8 120 24 360 0,62 0,42 - -
35 1,38 44 1,73 40 130 8 120 24 360 0,67 0,45 - -
38 1,50 47 1,85 40 130 7 105 21 315 0,72 0,48 - -
42 1,65 51 2,00 40 130 7 105 21 315 0,78 0,52 - -
45 1,77 54 2,13 40 130 6 90 18 270 0,84 0,56 - -
48 1,90 57 2,24 40 130 6 90 18 270 0,89 0,60 - -
51 2,00 60 2,36 40 130 5 75 15 225 0,94 0,63 - -
60 2,36 69 2,72 40 130 5 75 15 225 1,09 0,73 - -
63,5 2,50 72,5 2,85 40 130 4 60 12 180 1,15 0,77 - -
67 2,64 76 3,00 40 130 4 60 12 180 1,20 0,80 - -
70 2,76 79 3,11 40 130 4 60 12 180 1,26 0,84 - -
73 2,87 82 3,23 40 130 4 60 12 180 1,30 0,87 - -
76 3,00 85 3,35 40 130 4 60 12 180 1,36 0,91 - -
90 3,54 99 3,90 40 130 3 45 9 135 1,59 1,07 - -
102 4,00 111 4,37 40 130 3 45 9 135 1,80 1,21 - -
114 4,49 123 4,84 40 130 2 30 6 90 1,99 1,33 - -
127 5,00 136 5,35 40 130 2 30 6 90 2,22 1,49 - -
140 5,51 149 5,87 12 39 2 30 6 90 2,43 1,63 - -
152 6,00 161 6,34 12 39 2 30 6 90 2,65 1,78 - -
203 8,00 212 8,35 12 39 1 15 3 45 3,50 2,35 - -
254 10,00 263 10,35 12 39 1 15 3 45 4,34 2,91 - -
305 12,00 318 12,52 12 39 1 15 3 45 8,27 5,54 - -
350 13,78 365 14,37 12 39 1 15 3 45 10,35 6,93 - -
404 15,91 419 16,50 12 39 1 15 3 45 11,89 7,97 - -

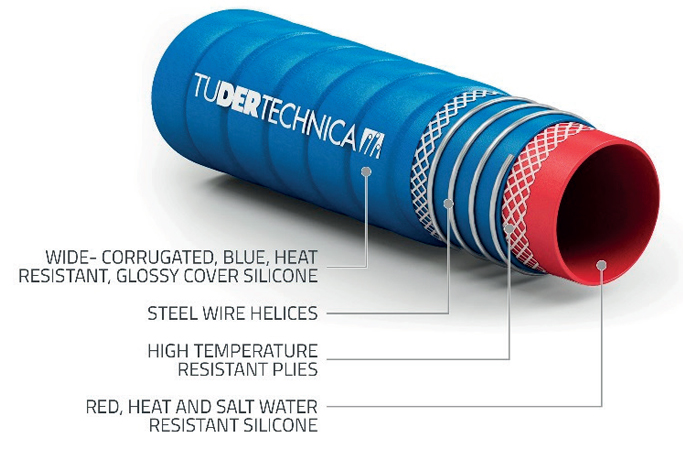

Tusil Marine Ond


tusil-marine-ond
request-quote

Used as marine main engine exhaust, generator exhaust, engine coolant circulation, engine intake and generator intake.


DESCRIPTION
  • Tube : silicone, red, heat and salt water resistant
  • Reinforcement : high temperature resistant plies, steel wire helices
  • Cover :wide - corrugated, blue silicone rubber, abrasion, ageing, ozone, heat and paraffin oil resistant, glossy cover
  • Marking : TUDERTECHNICA TUSIL® MARINE OND

TECHNICAL CHARACTERISTICS
  • Temperature range :-60°C / +200°C ( -76°F / +392°F )
  • Norm : SAE J2006 TYPE R2 ISO 13363:2004 - Type 2 class B ISO 1307 for dimensional tolerances

Inside diameter Outside diameter Vacuum Length Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [mm] [mt] [ft] [bar] [mm] [in] [mm] [in] [mt] [ft] [bar]
19 0,75 - - 0,6 8,5 40 130 8 120 24 360 0,48 0,32 90 3,54
25 1,00 - - 0,6 8,5 40 130 7 105 21 315 0,60 0,40 100 3,94
28 1,10 - - 0,6 8,5 40 130 7 105 21 315 0,66 0,44 105 4,13
32 1,25 - - 0,6 8,5 40 130 6 90 18 270 0,70 0,47 115 4,53
35 1,38 - - 0,6 8,5 40 130 5 75 15 225 0,80 0,54 125 4,92
38 1,50 - - 0,6 8,5 40 130 5 75 15 225 0,82 0,55 130 5,12
42 1,65 - - 0,6 8,5 40 130 5 75 15 225 1,00 0,67 135 5,31
45 1,77 - - 0,6 8,5 40 130 4 60 12 180 1,06 0,71 140 5,51
48 1,90 - - 0,6 8,5 40 130 4 60 12 180 1,12 0,75 150 5,91
51 2,00 - - 0,6 8,5 40 130 4 60 12 180 1,18 0,79 160 6,30
60 2,36 - - 0,6 8,5 40 130 3 45 9 135 1,36 0,91 165 6,50
63,5 2,50 - - 0,6 8,5 40 130 3 45 9 135 1,63 1,09 170 6,69
67 2,64 - - 0,6 8,5 40 130 3 45 9 135 1,70 1,14 175 6,89
70 2,76 - - 0,6 8,5 40 130 3 45 9 135 1,77 1,19 180 7,09
73 2,87 - - 0,6 8,5 40 130 3 45 9 135 1,85 1,24 200 7,87
76 3,00 - - 0,6 8,5 40 130 3 45 9 135 1,92 1,29 220 8,66
90 3,54 - - 0,6 8,5 40 130 2 30 6 90 3,21 2,15 250 9,84
102 4,00 - - 0,6 8,5 40 130 2 30 6 90 3,62 2,43 280 11,02
115 4,50 - - 0,6 8,5 40 130 2 30 6 90 4,02 2,69 290 11,42
127 5,00 - - 0,6 8,5 40 130 2 30 6 90 4,43 2,97 300 11,81
140 5,51 - - 0,6 8,5 12 39 2 30 6 90 5,69 3,81 360 14,17
152 6,00 - - 0,6 8,5 12 39 2 30 6 90 6,04 4,05 400 15,75
203 8,00 - - 0,6 8,5 12 39 2 30 6 90 10,87 7,28 450 17,72
254 10,00 - - 0,6 8,5 12 39 2 30 6 90 14,81 9,92 1200 47,24
305 12,00 - - 0,6 8,5 12 39 2 30 6 90 18,55 12,43 1450 57,09
350 13,78 - - 0,6 8,5 12 39 2 30 6 90 21,42 14,35 1750 68,90
404 15,91 - - 0,6 8,5 12 39 1 15 3 45 26,55 17,79 2000 78,74
