PVC Granules Hoses



Alispir Sil Form Inox


Hose for suction and delivery of pre-heated PVC granules, high temperature resistant, used as a connection between hopper and heated barrel. Specifically designed for the process industries where it is necessary for a high-performance hose made with tasteless and odorless compound. Meets migration test according to BfR Recommendation XV & XXI Cat. 2. Not intended for use as an implant material. Not suitable for blood or human fluids.

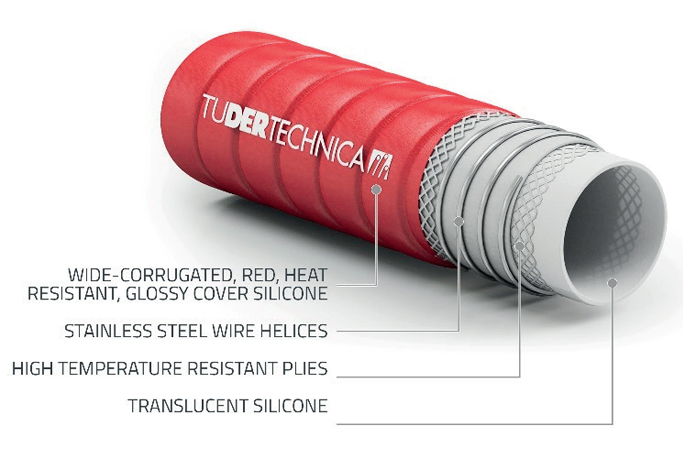

DESCRIPTION
  • Tube : silicone, translucent, phthalates free, tested in compliance with 1907/2006/CE (REACH). Meets FDA CFR 21 PART 177.2600, USP XXXII class VI requirements, European Pharmacopoeia 3.1.9 Ed. VII 2011, ISO 10993 Sections 5,10,11:2009, BfR Recommendation XV & XXI Cat. 2, European Reglement 1935/2004/CE, DM 21/03/1973 e seguenti, Japan Ministry of Health and Welfare Notice No.370,1959, No.201,2006 and revision 2012, 3A Sanitary Standard Class II
  • Reinforcement : high temperature resistant plies, stainless steel wire helices, on request a/s wire to discharge static electricity
  • Cover : wide-corrugated, red, silicone rubber, heat, ageing, ozone and abrasion resistant, glossy cover
  • Marking : TUDERTECHNICA ALISPIR SIL FORM

TECHNICAL CHARACTERISTICS
  • Temperature range : -60°C / +200°C ( -76°F / +392°F )
  • Norm : -60°C / +200°C ( -76°F / +392°F )
alispir-sil-form-inox
request-quote

Inside diameter Outside diameter Vacuum Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
51 2,00 - - 0,9 13 6 90 18 270 1,37 0,92 160 6,30
63,5 2,50 - - 0,9 13 5 75 15 225 2,01 1,35 200 7,87
76 3,00 - - 0,9 13 4 60 12 180 2,36 1,58 240 9,45
90 3,54 - - 0,9 13 4 60 12 180 3,23 2,16 300 11,81
102 4,00 - - 0,9 13 3 45 9 135 3,61 2,42 340 13,39
115 4,50 - - 0,9 13 3 45 9 135 4,04 2,71 450 17,72
152 6,00 - - 0,9 13 2 30 6 90 6,25 4,19 650 25,59
