Fluoropolymer Hoses

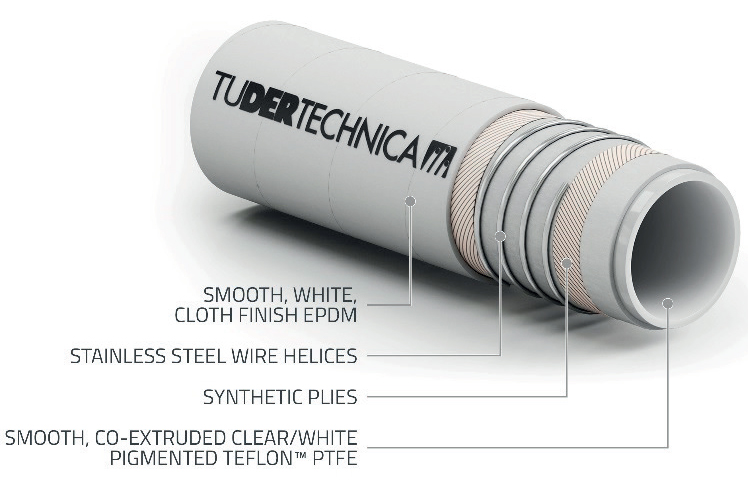

Tufluor PTFE Pharm


Suction and delivery hose designed according to EN 12115 standards for food, cosmetic and pharmaceutical products, chemicals and solvents, except for chlorine trifluoride, chlorine and fluorine gas, oxygen difluoride, phosgene and molten alkalis (for ex. sodium). Designed for the chemical industry, foodstuff, pharmaceutical and cosmetic industry, where a flexible connection is required. The hose is produced with high quality elastomers, with excellent chemical and mechanical properties. Not intended for use as an implant material. Not suitable for blood or human fluids.


DESCRIPTION
  • Tube : TEFLON™ PTFE, co-extruded clear/white pigmented, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXVI class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE, 3A Sanitary Standard Class II
  • Reinforcement : synthetic plies, stainless steel wire helices, a/s copper wires to discharge static electricity
  • Cover : smooth, EPDM, white, abrasion, ageing and ozone resistant, cloth finish
  • Marking : red / white / blue tape TUDERTECHNICA TUFLUOR® PTFE PHARM embossed according to norm EN 12115 TUDERTECHNICA PTFE EN12115:2011 DN SD PN 16 BAR M Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +150°C ( -40°F / +302°F ) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type M according to norm EN 12115 (R<102 Ω)
  • Norm : EN12115
tufluor-ptfe-pharm
request-quote

Inside diameter Outside diameter Vacuum Length Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [mt] [ft] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
13 0,50 25 1,00 0,9 13 40 130 16 250 64 1000 0,54 0,36 90 3,54
19 0,75 31 1,22 0,9 13 40 130 16 250 64 1000 0,70 0,47 130 5,12
25 1,00 37 1,46 0,9 13 40 130 16 250 64 1000 0,86 0,58 170 6,69
32 1,25 44 1,73 0,9 13 40 130 16 250 64 1000 1,18 0,79 215 8,46
38 1,50 51 2,00 0,9 13 40 130 16 250 64 1000 1,43 0,96 255 10,04
50 1,97 66 2,60 0,9 13 40 130 16 250 64 1000 2,08 1,39 330 12,99
63,5 2,50 79,5 3,13 0,9 13 20 65 16 250 64 1000 2,96 1,98 430 16,93
75 2,95 91 3,58 0,9 13 20 65 16 250 64 1000 3,43 2,30 510 20,08
100 3,94 116 4,57 0,9 13 20 65 12 185 48 750 4,60 3,08 675 26,57

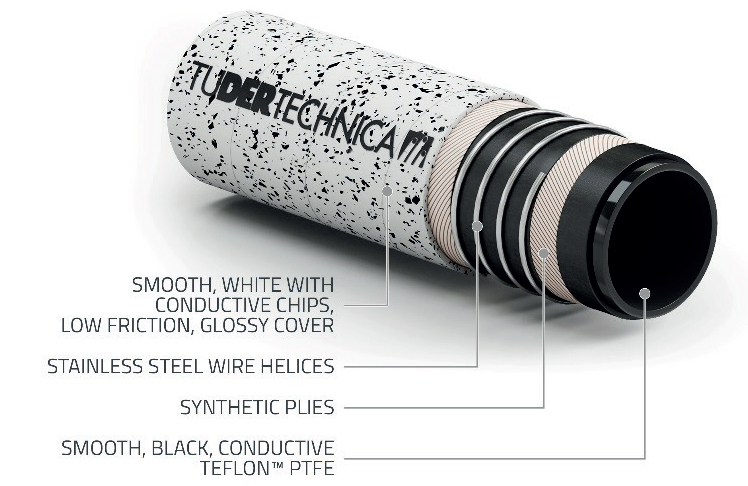

Tufluor PTFE Biotech


Tufluor PTFE Biotech
request-quote

Suction and delivery hose designed according to EN 12115 standards for food, cosmetic and pharmaceutical products, chemicals and solvents, except for chlorine trifluoride, chlorine and fluorine gas, oxygen difluoride, phosgene and molten alkalis (for ex. sodium). Designed for the chemical industry, foodstuff, pharmaceutical and cosmetic industry, where a flexible connection is required. The hose is produced with high quality elastomers, with excellent chemical and mechanical properties. Not intended for use as an implant material. Not suitable for blood or human fluids. Tested and certified hose by INERIS for use in Atex area (Ex-Zone).


DESCRIPTION
  • Tube : TEFLON™ PTFE, black, conductive, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXII class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE
  • Reinforcement : synthetic plies, stainless steel wire helices, a/s wire to discharge static electricity
  • Cover : smooth, white with conductive chips, low friction material, non-marking when dragged on the floor, oil, chemical, abrasion, ageing and ozone resistant, easy to clean, glossy cover. Meets FDA 21 cfr 177.1520, BfR cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE
  • Marking : red / white / blue tape TUDERTECHNICA TUFLUOR® PTFE BIOTECH embossed according to norm EN 12115 TUDERTECHNICA PTFE EN12115:2011 DN SD PN 16 BAR Ω /T Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +150°C ( -40°F / +302°F ) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω, R<109 Ω through the hose wall)
  • Norm : EN12115

Inside diameter Outside diameter Vacuum Length Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [mt] [ft] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
13 0,50 25 1,00 0,9 13 40 130 16 250 64 1000 0,54 0,36 90 3,54
19 0,75 31 1,22 0,9 13 40 130 16 250 64 1000 0,70 0,47 130 5,12
25 1,00 37 1,46 0,9 13 40 130 16 250 64 1000 0,86 0,58 170 6,69
32 1,25 44 1,73 0,9 13 40 130 16 250 64 1000 1,17 0,78 220 8,66
38 1,50 51 2,00 0,9 13 40 130 16 250 64 1000 1,35 0,90 260 10,24
50 1,97 66 2,60 0,9 13 40 130 16 250 64 1000 2,25 1,51 345 13,58
63,5 2,50 79,5 3,13 0,9 13 20 65 16 250 64 1000 2,90 1,94 440 17,32
75 2,95 91 3,58 0,9 13 20 65 16 250 64 1000 3,88 2,60 520 20,47

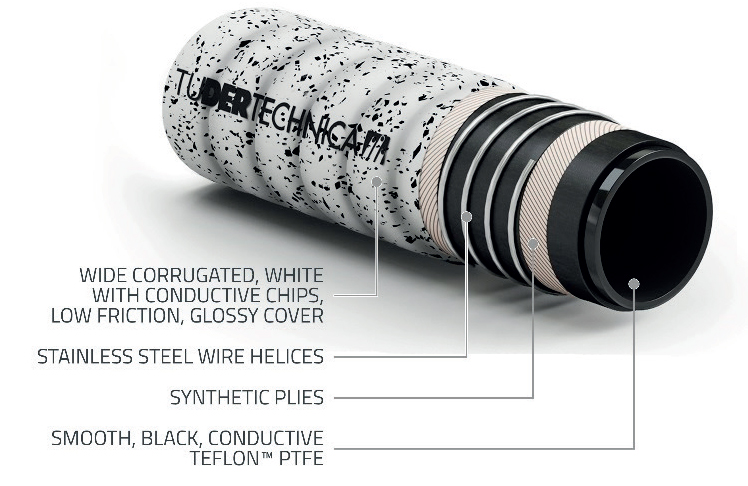

Glidetech PTFE Biotech


Suction and delivery hose designed according to EN 12115 standards for food, cosmetic and pharmaceutical products, chemicals and solvents, except for chlorine trifluoride, chlorine and fluorine gas, oxygen difluoride, phosgene and molten alkalis (for ex. sodium). Designed for the chemical industry, foodstuff, pharmaceutical and cosmetic industry, where a flexible connection is required. The hose is produced with high quality elastomers, with excellent chemical and mechanical properties. Not intended for use as an implant material. Not suitable for blood or human fluids. Tested and certified hose by INERIS for use in Atex area (Ex-Zone).


DESCRIPTION
  • Tube : TEFLON™ PTFE, black, conductive, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXII class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE
  • Reinforcement : synthetic plies, stainless steel wire helices, a/s wire to discharge static electricity
  • Cover : wide corrugated, white with conductive chips, low friction material, nonmarking when dragged on the floor, oil, chemical, abrasion, ageing and ozone resistant, easy to clean, glossy cover. Meets FDA 21 cfr 177.1520, BfR cat III, DM 21.03.73 e seguenti, EUROPEAN REGLEMENT 1935/2004/CE
  • Marking : red / white / blue tape TUDERTECHNICA GLIDETECH® PTFE BIOTECH embossed according to norm EN 12115 TUDERTECHNICA PTFE EN12115:2011 DN SD PN 10 BAR Ω /T Q/Y

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +150°C ( -40°F / +302°F ) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Electrical properties : type Ω/T according to norm EN 12115 (R<106 Ω, R<109 Ω through the hose wall)
  • Norm : EN12115
glidetech-ptfe-biotech
request-quote

Inside diameter Outside diameter Vacuum Length Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [mt] [ft] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
13 0,50 25 1,00 0,9 13 40 130 10 150 40 600 0,49 0,33 70 2,76
19 0,75 31 1,22 0,9 13 40 130 10 150 40 600 0,64 0,43 100 3,94
25 1,00 37 1,46 0,9 13 40 130 10 150 40 600 0,79 0,53 130 5,12
32 1,25 44 1,73 0,9 13 40 130 10 150 40 600 0,91 0,61 160 6,30
38 1,50 51 2,00 0,9 13 40 130 10 150 40 600 1,24 0,83 190 7,48
50 1,97 66 2,60 0,9 13 40 130 10 150 40 600 1,84 1,23 250 9,84
63,5 2,50 79,5 3,13 0,9 13 20 65 10 150 40 600 2,56 1,72 320 12,60
75 2,95 91 3,58 0,9 13 20 65 10 150 40 600 2,98 2,00 380 14,96

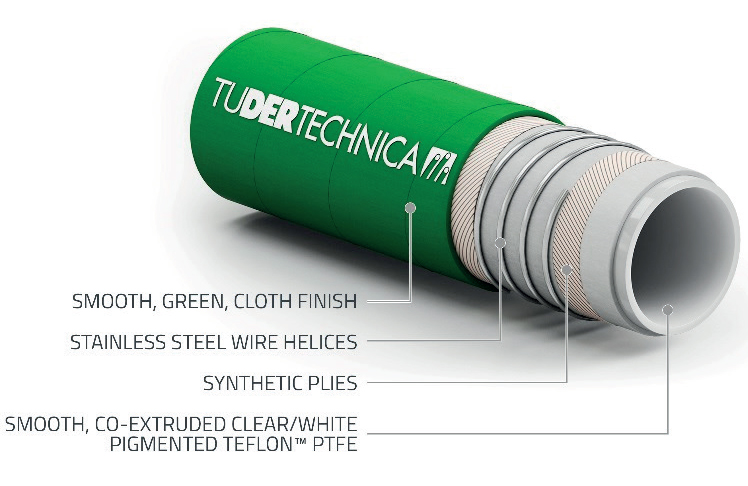

Tufluor Evolution


Tufluor Evolution
request-quote

Suction and delivery hose for chemicals and solvents, except for chlorine trifluoride, chlorine and fluorine gas, oxygen difluoride, phosgene and molten alkalis (for ex. sodium). Designed for the chemical industry, foodstuff, pharmaceutical and cosmetic industry, where a flexible connection is required. The hose is produced with high quality elastomers, with excellent chemical and mechanical properties. Not intended for use as an implant material. Not suitable for blood or human fluids.


DESCRIPTION
  • Tube : TEFLON™ PTFE, co-extruded clear/white pigmented, smooth, phthalates free, tested in compliance with 1907/2006/CE (REACH). TEFLON™ PTFE is a polymer with excellent resistance to high temperature, mechanical stress and to oxidation. It complies with FDA 21 CFR 177.1550 standards, USP XXXVI class VI, ISO 10993 Sections 5,10,11:2009, EUROPEAN REGLEMENT 1935/2004/CE AND 10/2011/CE, 3A Sanitary Standard Class II
  • Reinforcement : synthetic plies, stainless steel wire helices, a/s copper wires to discharge static electricity
  • Cover : smooth, green, abrasion, ageing and ozone resistant, cloth
  • Marking : TUDERTECHNICA TUFLUOR® EVOLUTION

TECHNICAL CHARACTERISTICS
  • Temperature range : -40°C / +150°C ( -40°F / +302°F ) The operating temperature of the hose is directly dependent upon the specific fluid been conveyed and the length of time the fluid is in contact with the hose.
  • Norm : ISO 1307 for dimensional tolerances

Inside diameter Outside diameter Vacuum Length Working pressure Burst pressure Appr. weight Bending radius
[mm] [in] [mm] [in] [bar] [psi] [mt] [ft] [bar] [psi] [bar] [psi] [kg/mt] [lbs/ft] [mm] [in]
13 0,50 25 1,00 0,9 13 40 130 10 150 40 600 0,51 0,34 75 2,95
19 0,75 31 1,22 0,9 13 40 130 10 150 40 600 0,66 0,44 110 4,33
25 1,00 37 1,46 0,9 13 40 130 10 150 40 600 0,81 0,54 150 5,91
32 1,25 44 1,73 0,9 13 40 130 10 150 40 600 1,11 0,74 200 7,87
38 1,50 51 2,00 0,9 13 40 130 10 150 40 600 1,35 0,90 240 9,45
50 1,97 66 2,60 0,9 13 40 130 10 150 40 600 2,06 1,38 320 12,60
