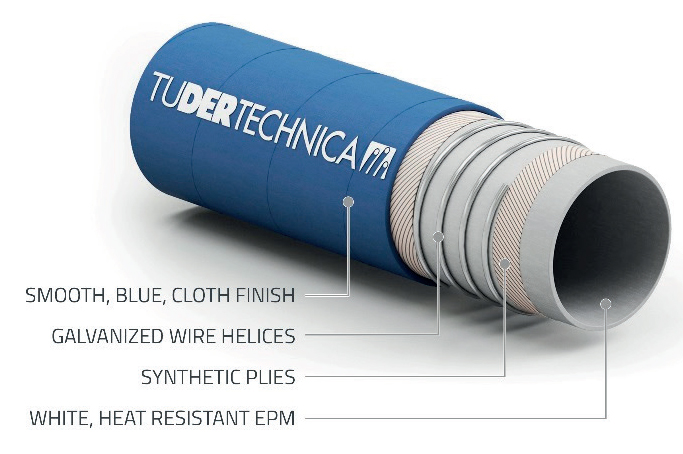

Suction and delivery hose suitable for hot and dry air from compressor to the tank truck.
DESCRIPTION
- Tube : EPM, white, heat resistant
- Reinforcement : synthetic plies, galvanized wire helices
- Cover : smooth, blue, abrasion, ageing and ozone resistant, cloth finish
- Marking : TUDERTECHNICA DESERT WIND
TECHNICAL CHARACTERISTICS
- Temperature range : -40°C / +170°C ( -40°F / +338°F ); peaks of 180 °C (+356°F)
- Norm : ISO 1307 for dimensional tolerances
| Inside diameter | Outside diameter | Vacuum | Working pressure | Burst pressure | Appr. weight | Bending radius | ||||||||
| [mm] | [in] | [mm] | [in] | [bar] | [psi] | [bar] | [psi] | [bar] | [psi] | [kg/mt] | [lbs/ft] | [mm] | [in] | |
| 51 | 2,00 | 64 | 2,48 | 0,9 | 13 | 10 | 150 | 30 | 450 | 1,69 | 1,13 | 210 | 8,27 | |
| 63,5 | 2,50 | 78,5 | 3,09 | 0,9 | 13 | 10 | 150 | 30 | 450 | 2,50 | 1,68 | 265 | 10,43 | |
| 76 | 3,00 | 91 | 3,58 | 0,9 | 13 | 10 | 150 | 30 | 450 | 2,93 | 1,96 | 320 | 12,60 | |
| 102 | 4,00 | 118 | 4,65 | 0,9 | 13 | 10 | 150 | 30 | 450 | 4,23 | 2,83 | 430 | 16,93 | |

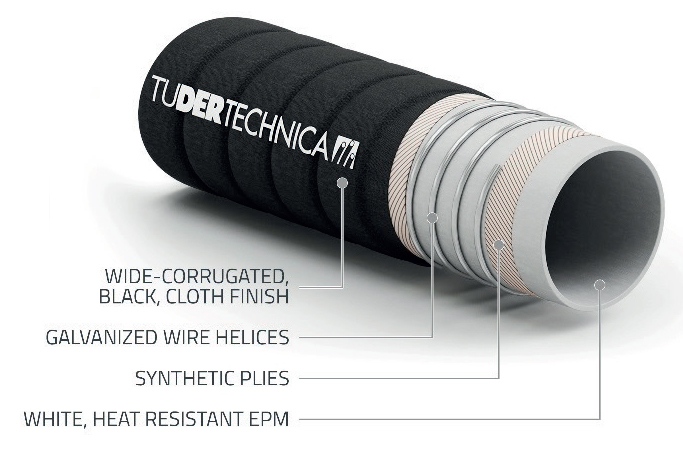

Flexible suction and delivery hose suitable for hot and dry air from compressor to the tank truck.
DESCRIPTION
- Tube : EPM, white, heat resistant
- Reinforcement : synthetic plies, galvanized wire helices
- Cover : wide-corrugated, black, abrasion, ageing and ozone resistant, cloth finish
- Marking : TUDERTECHNICA DUNES WIND
TECHNICAL CHARACTERISTICS
- Temperature range : -40°C / +170°C ( -40°F / +338°F ); peaks of 180 °C (+356°F)
- Norm : ISO 1307 for dimensional tolerances
| Inside diameter | Th. outside diameter | Vacuum | Working pressure | Burst pressure | Appr. weight | Bending radius | |||||||
| [mm] | [in] | [mm] | [in] | [bar] | [psi] | [bar] | [psi] | [bar] | [psi] | [kg/mt] | [lbs/ft] | [mm] | [in] |
| 51 | 2,00 | 66 | 2,60 | 0,9 | 13 | 10 | 150 | 30 | 450 | 1,83 | 1,23 | 100 | 3,94 |
| 63,5 | 2,50 | 78,5 | 3,09 | 0,9 | 13 | 10 | 150 | 30 | 450 | 2,21 | 1,48 | 130 | 5,12 |
| 76 | 3,00 | 92 | 3,62 | 0,9 | 13 | 10 | 150 | 30 | 450 | 2,80 | 1,88 | 150 | 5,91 |
| 102 | 4,00 | 118 | 4,65 | 0,9 | 13 | 10 | 150 | 30 | 450 | 3,83 | 2,57 | 250 | 9,84 |
